Precise Temperature Control: Ensures reliable results with minimal deviation.
Stable Performance: Designed for consistent and accurate testing.
Wide Testing Range: Covers temperatures from -40°C to +150°C and low pressures up to 1kPa.
Multi-Layer Protection: Guarantees safe operation under extreme conditions.
The ITM-LAB GDJZ Series combines high- and low-temperature testing with reduced air pressure simulation to evaluate product reliability under controlled environmental conditions.
Designed for aerospace, electronics, telecommunications and industrial applications, the series offers low-pressure simulation down to 1 kPa, customizable chamber capacities and application-specific temperature configurations.
Equipment operating at high altitudes may experience reduced atmospheric pressure alongside changing temperatures. These conditions can affect thermal management, electrical insulation, sealed components and overall equipment reliability.
The GDJZ Series enables temperature and low-pressure exposure within a single chamber, supporting environmental reliability testing, product development and qualification programs.
Test conditions are configured according to the required temperature-pressure profile, specimen characteristics and applicable test procedure.
The GDJZ Series combines temperature regulation with controlled pressure reduction for altitude simulation. Based on the published series specifications, temperature fluctuation is ±0.5°C, temperature deviation ≤±2°C, and temperature uniformity ≤2.0°C under specified test conditions.
The pressure system supports simulation down to 1 kPa, with adjustable pressure transition rates. Temperature and pressure performance under simultaneous operation depend on the selected configuration and test conditions.
Chamber capacity and internal dimensions can be customized to accommodate different specimen sizes, test loads and laboratory requirements.

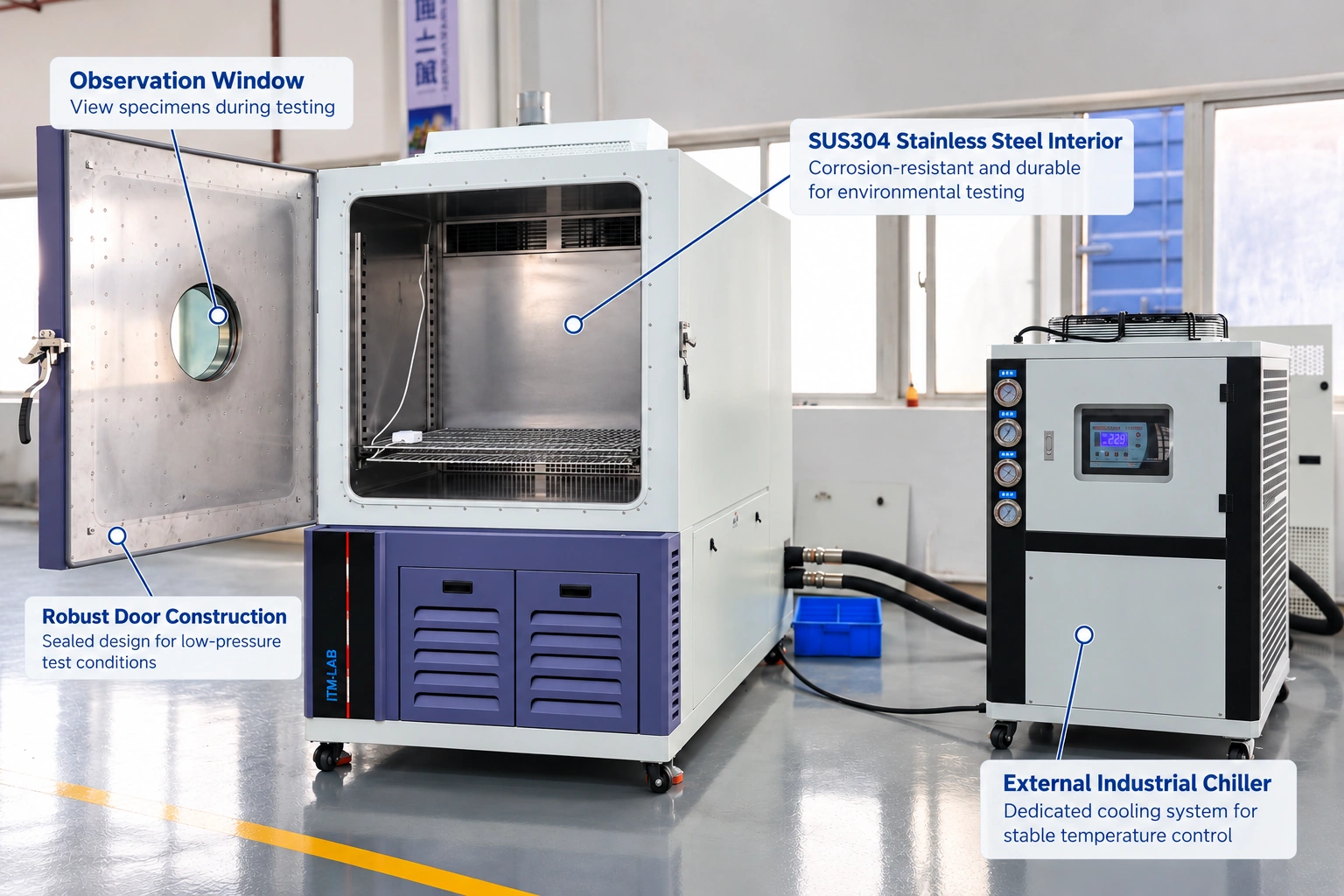

The chamber features a SUS304 stainless steel interior, insulated construction and an observation window for monitoring specimens during testing. Chamber dimensions, specimen supports and selected accessories are determined by the application.
The GDJZ Series can be configured with supporting cooling equipment according to chamber capacity and thermal requirements.

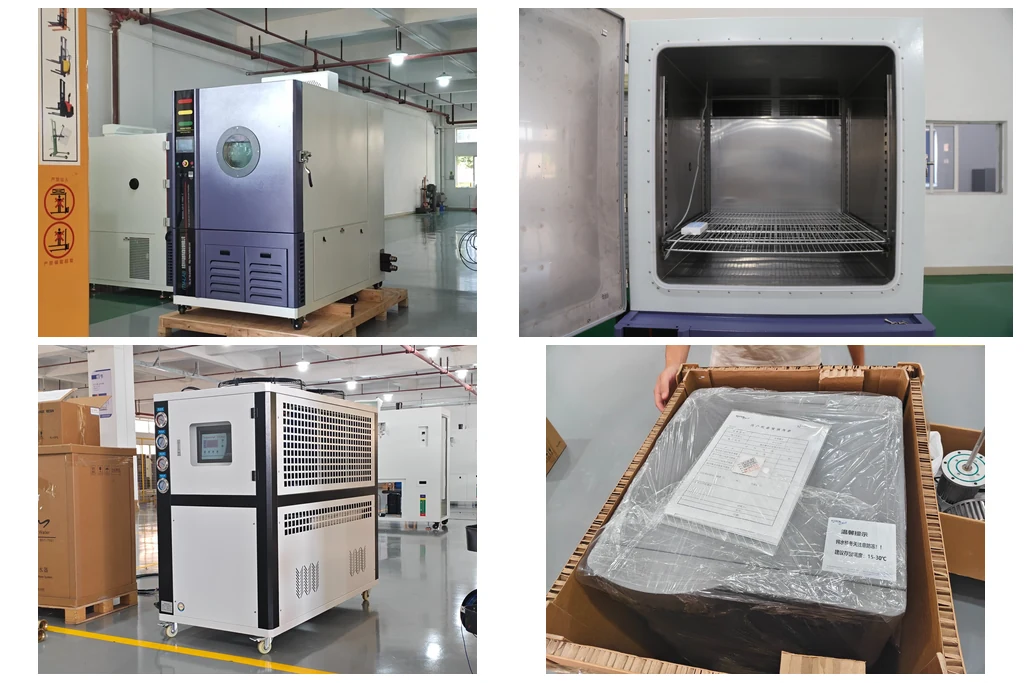

The actual ITM-LAB project shown here incorporates an external industrial chiller connected to the environmental chamber, demonstrating an application-specific system configuration.
The GDJZ Series supports application-specific configurations. Published performance values should be interpreted according to the selected model and stated test conditions.
| Parameter | GDJZ Series |
|---|---|
| Chamber Capacity | Customizable |
| Temperature Range | −40°C to +150°C (published series specification); alternative configurations available |
| Temperature Fluctuation | ±0.5°C |
| Temperature Deviation | ≤±2°C |
| Temperature Uniformity | ≤2.0°C |
| Heating Rate | ≥3°C/min |
| Cooling Rate | ≥1°C/min |
| Temperature Overshoot | ≤1°C |
| Pressure Range | Normal atmospheric pressure to 1 kPa |
| Pressure Deviation | ≤±2 kPa (≥40 kPa); ≤±5% (2–40 kPa); ≤±0.1 kPa (≤2 kPa) |
| Pressure Reduction Time | Configuration-dependent |
| Pressure Recovery Rate | ≥10 kPa/min |
| Altitude Simulation Rate | Adjustable according to configuration |
| Chamber Interior | SUS304 stainless steel |
| Exterior | Coated cold-rolled steel |
| Chamber Dimensions | Customizable |
| Cooling Configuration | Application-specific; external industrial chiller available |
The GDJZ-535L-B represents a specific project configuration rather than the fixed capacity of the entire series.
| Parameter | Reference Project |
|---|---|
| Effective Volume | 535 L |
| Inner Dimensions (W × H × D) | 850 × 900 × 700 mm |
| Maximum Chamber Load | 50 kg |
| Exterior Dimensions (W × H × D) | 1,150 × 2,100 × 1,750 mm |
| Interior Material | SUS304 stainless steel |
| Cooling System | External industrial chiller in the photographed system |
Other chamber sizes and equipment configurations can be reviewed according to project requirements.
The GDJZ Series is designed for evaluating equipment and components exposed to low air pressure, temperature extremes or combined environmental conditions.
| Industry | Typical Applications |
|---|---|
| Aerospace & Aviation | Avionics, sensors and electronic assemblies exposed to altitude conditions |
| Electronics & Electrical | Circuit assemblies, electrical equipment and sealed enclosures |
| Telecommunications | Communication modules and electronic systems operating at elevated locations |
| Industrial Equipment | Instruments, control devices and environmental reliability testing |
The appropriate test profile depends on the product's operating environment, exposure duration and applicable standard.
The GDJZ Series can be evaluated for environmental test procedures involving temperature and reduced air pressure, including:
IEC 60068-2-13 — Low air pressure
IEC 60068-2-1 / IEC 60068-2-2 — Cold and dry heat
IEC 60068-2-40 — Combined cold/low air pressure
RTCA DO-160 Section 4 — Temperature and altitude
MIL-STD-810 Method 500 — Low pressure (altitude)
Suitability for a particular standard or test category must be confirmed against the required temperature-pressure conditions, exposure duration, specimen load and equipment configuration.
Listing these standards does not imply certification or compliance with every procedure.
As an original brand manufacturer, ITM-LAB provides application-based chamber design and manufacturing for different environmental testing requirements.
Customers can specify chamber dimensions, temperature and pressure profiles, specimen characteristics and supporting equipment. Available options and performance are reviewed according to the final engineering configuration.
For an accurate recommendation, please provide:
Required temperature range and minimum absolute pressure
Specimen dimensions, weight and operating heat load
Chamber capacity or usable workspace
Required pressure transition rate and exposure duration
Applicable test standard or customer test procedure
Required control functions, interfaces and installation conditions
Temperature & Low-Pressure Testing Configured for Your Application
ITM-LAB provides customized GDJZ environmental test chambers with engineering support for chamber sizing, test conditions and supporting equipment.
Share your required temperature range, pressure profile, specimen dimensions and applicable test standard to receive a suitable configuration recommendation.
Request a Datasheet | Send Your Test Requirements | Get a Quotation
An altitude test chamber simulates reduced atmospheric pressure to evaluate how components and equipment perform under high-altitude conditions. Temperature-controlled configurations also support testing under combined thermal and low-pressure environments.
The published GDJZ specification lists a minimum pressure of 1 kPa. Achievable pressure and temperature conditions depend on the selected configuration and test profile.
Yes. The GDJZ Series is designed for combined temperature and low-pressure testing. The achievable temperature range at a particular pressure must be confirmed for the selected chamber configuration.
Yes. ITM-LAB offers customizable chamber capacities and internal dimensions. The 535 L GDJZ-535L-B is one reference project, not the only available size.
The system can be configured for selected environmental test procedures. Final suitability depends on the specified test method, temperature-pressure profile, specimen conditions and equipment configuration.

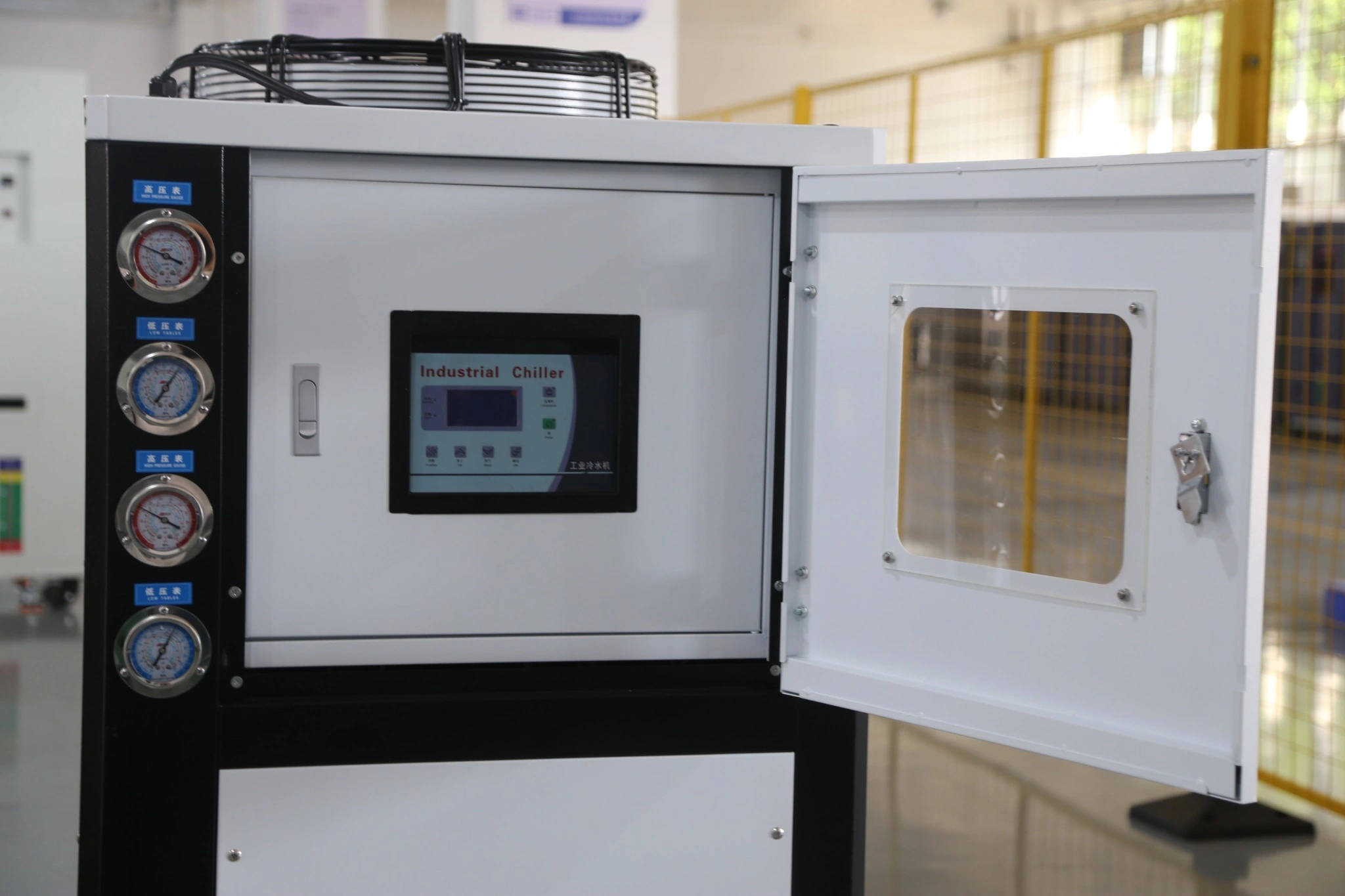

Not necessarily. The photographed GDJZ system uses an external industrial chiller. Cooling arrangements are determined according to the selected chamber design and operating requirements.
